Product Description:

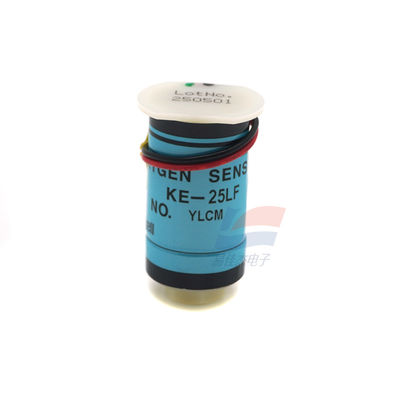

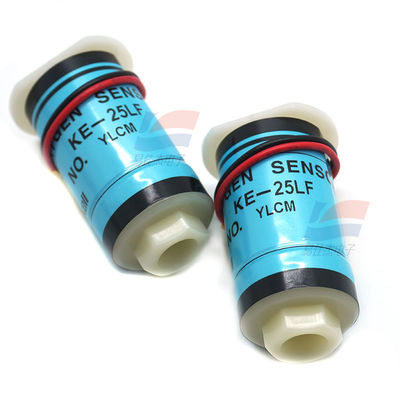

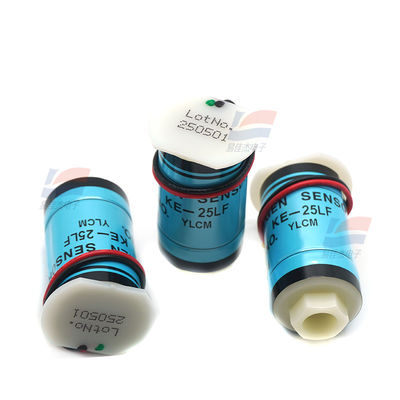

KE-25LF Electrochemical Long-Life Lead-Free Oxygen Sensor Oxygen Cell Is Used In Safety Field
Features:
Long-life lead-free battery type oxygen sensor KE-25LF and KE-25F3LF of Japanese Figaro:
The oxygen sensor KE-LF series (KE-25LF and KE-25F3LF) is a unique galvanic battery type oxygen sensor developed by Japanese Maxell Corporation. It/That
The notable features are lead-free, long service life, excellent chemical stability, and immunity from interference and influence by CO2. The KE-LF series oxygen sensors were developed to meet the growing demand for oxygen detection in various industries, such as gas monitoring, biotechnology applications, residential gas appliances, etc.

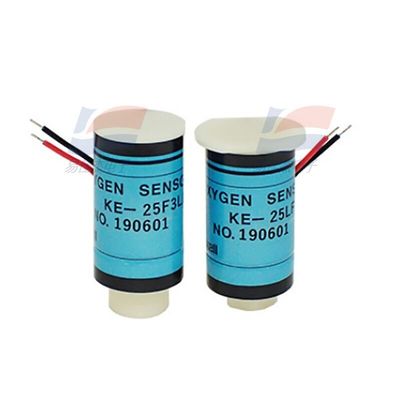

Japanese Figaro Long-life Lead-free Battery-type Oxygen Sensor KE-25LF, KE-25F3LF
Features:
Lead-free Galvanic Battery Sensor
Sensor operation does not require an external power supply
No preheating time required
Complies with RoHS2 standards
Weakly acidic electrolyte
Almost unaffected by CO2, H2S, SO2
Long service life, 3-5 years in air environment
Japanese Figaro Long-life Lead-free Battery-type Oxygen Sensor KE-25LF, KE-25F3LF Applications:
Safety field - Oxygen detector
Environmental control - Gas monitoring
Food industry - Refrigerants, greenhouses
Educational equipment - Oxygen experiment kit
Performance of oxygen sensor KE-25:
Detection range: 0 - 100% O2
Accuracy KE-25: 1% (full range)
Working temperature: 5 - 40℃
Storage temperature: -20 to +60℃
Response time KE-25: 14 ± 2 seconds
Air output: KE-25: 10.0 - 15.5 mv
Life expectancy KE-25: 5 years
Specifications:
| Operating temperature |
-20 to +60℃ |
| Storage temperature |
0 to 25°C |
| Shelf life |
6 months |
| No condensation |
0 - 99% RH |
