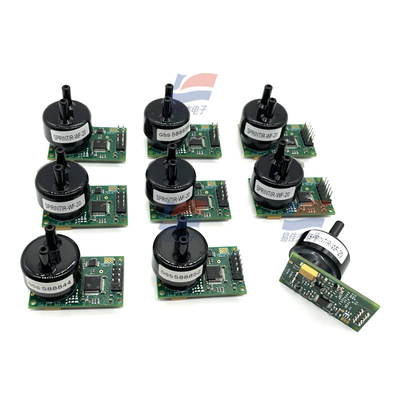

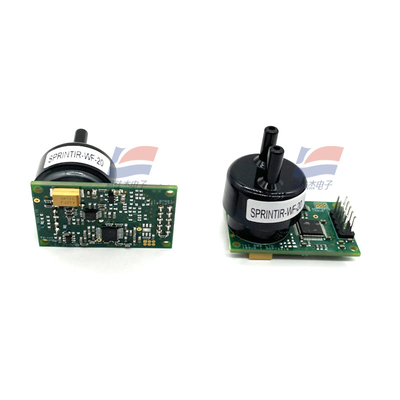

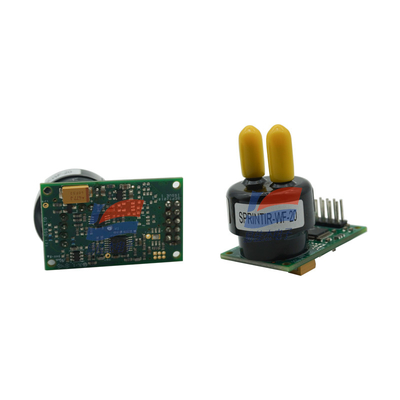

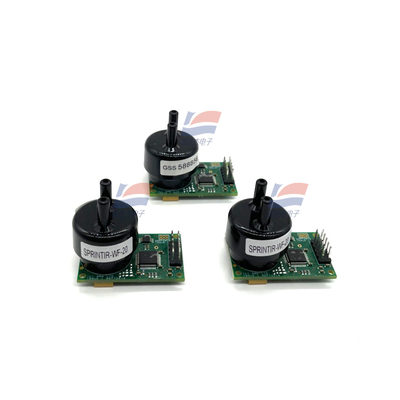

YJJ SprintIR-WF-60 Speed Response Infrared Carbon Dioxide Sensor NDIR CO2 Sensor for Industrial Field Consumption 35mW

Product Description:

SprintIR-WF-60 High-Speed Response Infrared Carbon Dioxide Sensor (NDIR CO2 Sensor) Is Used In Industrial Field

Features:

First, the UK GSS high-speed response infrared carbon dioxide sensor (NDIR CO2 sensor)SprintIR-WF Product description:

SprintIR is a high-speed responsive infrared CO2 sensor (20Hz), the infrared CO2 sensor SprintIR is suitable for capturing fast changes in CO2 concentration

Domains, such as metabolic assessment and ventilators, can also be used in the industrial field.

Second, the UK GSS high-speed response infrared carbon dioxide sensor (NDIR CO2 sensor)SprintIR-WF product features:

High Speed detection (20Hz)

Measurements range from 0 to 100%

The supply voltage is 3.3v

Low power consumption 35mW

Ventilation pipe is optional

Third, the UK GSS high-speed response infrared carbon dioxide sensor (NDIR CO2 sensor)SprintIR-WF product parameters:

Preheating time <1 minute

Working environment

0 ° C to 50 ° C (standard), -25 ° C to 55 ° C (extensible range), 0 to 95%RH, not

Dew formation

Storage temperature -30℃~+70℃

Sensing method Nondiffuse infrared light absorption technology

Gold plated light path patent technology

All-solid-state light source and detector patented technology

Sampling method Gas diffusion or pump type

Measuring range 0-5%, 0-20%, 0-60%, 0-100%

Maximum nonlinearity <1%FS for readings with accuracy of ±70ppm or +/-5%

Working pressure range 950mbar to 1050mbar

Response time 10 seconds ~ 3 minutes (user configured), every
