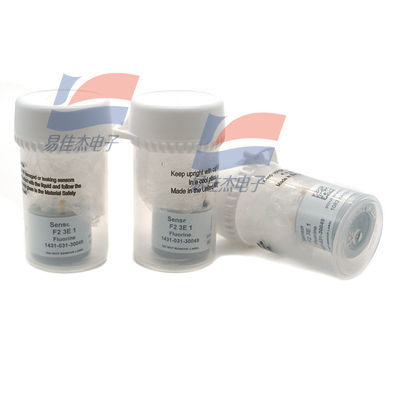

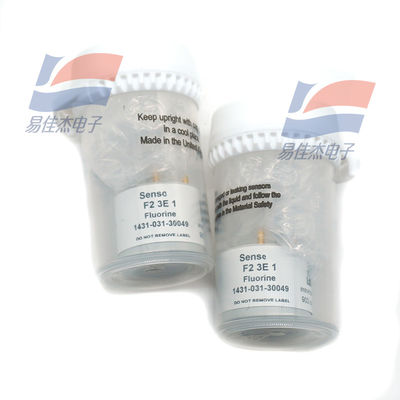

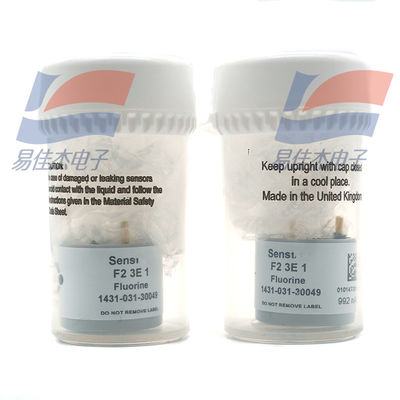

YJJ F2 3E 11431-031-30049 Fluorine Gas Sensor Electromechanical Mini Standard Type 4 Series And 7 Series Three Sizes

Product Description:

YJJ F2 3E 1 1431-031-30049 Fluorine Gas Sensor Electromechanical Mini Standard Type 4 Series And 7 Series Three Sizes

Features:

Main parameters of the F2 3E1 gas sensor are as follows:

Measurement range and resolution

Measurement range: 0 - 1 ppm (fluorine gas concentration)

Resolution: < 0.02 ppm (at 20℃)

Working conditions

Temperature range: -10℃ to 40℃

Humidity range: 15% - 90% relative humidity

Performance indicators

Cross-interference: Anti-interference gases include AsH3, CO, CL2, HCN, H2S, NO2, O3, SO2, etc.

Response time: T90 < 120 seconds (signal stabilization time)

Power Supply and Output

Power Voltage: Not explicitly stated, but common industrial gas sensors typically use 24V direct current for power supply.

Output signal: 650 nA/ppm ± 150 nA/ppm (current output)

Other features

Number of electrodes: 3 electrodes

Service life: More than 18 months of use in the air

Specifications:
