Product Description:

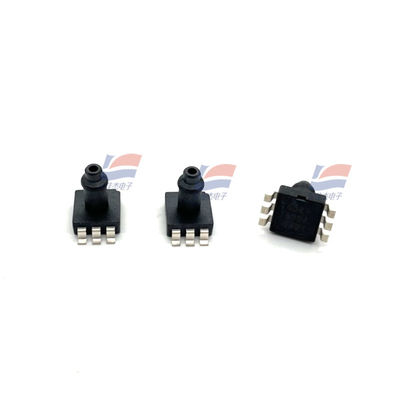

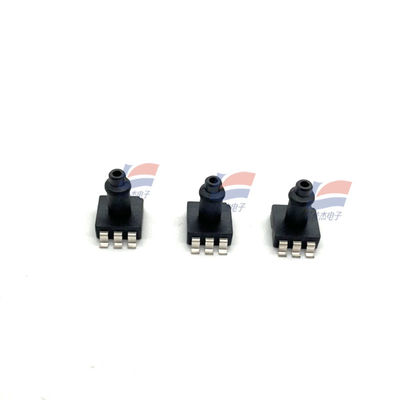

YJJ XGZP160-701 0-700KPA Pressure Sensor Is Used For Monitoring Liquid Pressure
Features:
Main parameters of the XGZP160 pressure sensor are as follows:
1. High precision: The pressure sensor adopts advanced sensing technology, featuring high precision and stability, and can accurately measure pressure values.
2. Wide measurement range: This product can be applied in various industrial fields and has a wide measurement range, meeting different pressure requirements.
3. Fast response: The pressure sensor has a fast response time and can promptly capture and feedback pressure changes.
4. Strong corrosion resistance: The sensor made of special materials can work stably in corrosive environments for a long time, ensuring the lifespan and reliability of the product.
5. Communication interface: This product is equipped with a standard serial port interface, facilitating data transmission and communication with other devices.
III. Technical parameters
1. Measurement range: 0 - 1000 kPa
2. Accuracy: ±0.5% F.S.
3. Response time: < 1 ms
4. Working temperature: -20℃ - 80℃
5. Supply voltage: DC 5V
6. Communication interface: RS485
Work pressure range
-100 kPa to 100 kPa (gauge pressure)
Output voltage
50 - 90 mV (analog signal output)
Accuracy
±5% of full scale
Power supply voltage 10V DC
Packaging form
DIP6 dual-row straight chip-in package
Operating temperature range
-30℃ to 100℃
Application fields
Suitable for scenarios such as vacuum packaging machines and measuring instruments, and supports monitoring of gas/liquid pressure.
Specifications:
| Measurement range |
-100 kPa to 100 kPa |
| Accuracy |
±0.5% F.S |
| Response time |
< 1 ms |
| Working temperature |
-20℃ - 80℃ |
